Tab Pages

✅ Validated against Unraid 7.2.3 - Menu structures and page types verified against live server.

Overview

Complex plugins often need multiple configuration sections. Unraid provides a tab interface for organizing settings into logical groups.

Here’s how Unraid’s tab interface looks in the Plugins page:

Tab interface example

Here’s an example of a plugin adding a custom tab to an existing page:

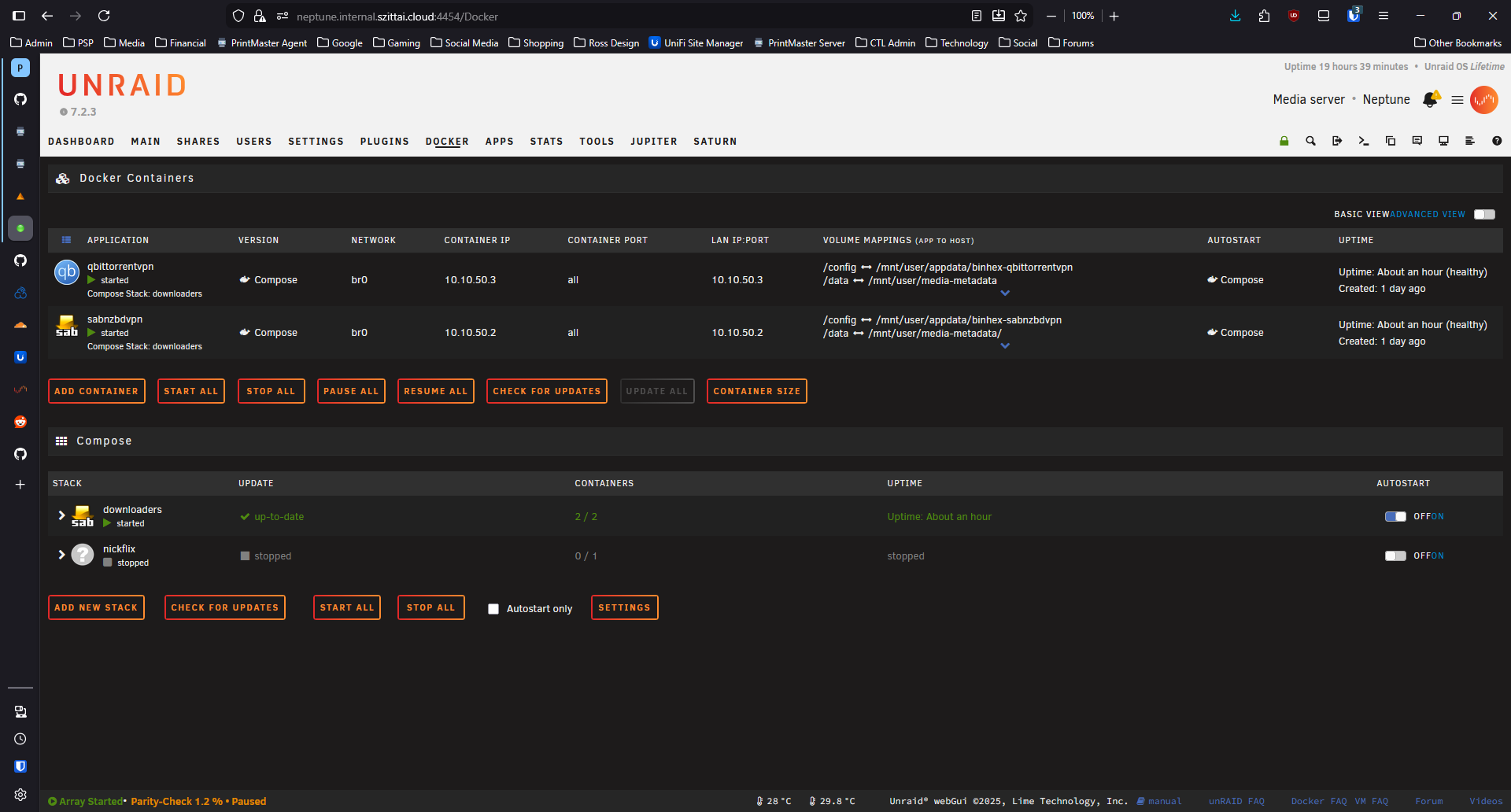

Docker page with Compose tab Compose Manager adds a “Compose” tab to the Docker page

Basic Tab Structure

Tabs consist of clickable tab headers and corresponding content panels. Use data-tab attributes to link headers with their content. Only one tab’s content is visible at a time—JavaScript handles showing/hiding based on which tab is clicked.

<?
// Tab page structure example
?>

<div class="tabs">
    <div class="tab" data-tab="general">General</div>
    <div class="tab" data-tab="advanced">Advanced</div>
    <div class="tab" data-tab="about">About</div>
</div>

<div class="tab-content" data-tab="general">
    <!-- General settings content -->
    <form method="POST">
        <input type="hidden" name="csrf_token" value="<?=$var['csrf_token']?>">
        <!-- Form fields -->
    </form>
</div>

<div class="tab-content" data-tab="advanced">
    <!-- Advanced settings content -->
</div>

<div class="tab-content" data-tab="about">
    <!-- About/info content -->
</div>

JavaScript for Tabs

This jQuery code handles tab switching. When a tab is clicked, it adds the active class to highlight it, hides all content panels, then shows only the panel matching the clicked tab’s data-tab value. The first tab is activated automatically on page load.

$(function() {
    // Tab switching
    $('.tab').on('click', function() {
        var tabId = $(this).data('tab');

        // Update tab state
        $('.tab').removeClass('active');
        $(this).addClass('active');

        // Show content
        $('.tab-content').hide();
        $('.tab-content[data-tab="' + tabId + '"]').show();
    });

    // Activate first tab
    $('.tab:first').click();
});

Unraid® page files use header attributes to control menu placement, page type, and behavior. Here are the key attributes:

Attribute	Description	Example
`Menu`	Parent menu and sort order	`Menu="Docker:2"`
`Title`	Display name in menu/tab	`Title="Compose"`
`Type`	Page type (see below)	`Type="xmenu"`
`Icon`	Menu icon (icon class or path)	`Icon="cubes"`
`Tag`	Font Awesome icon for tabs	`Tag="fa-cubes"`
`Code`	Unicode for custom icon	`Code="f1b3"`
`Cond`	PHP condition for visibility	`Cond="$var['fsState'] == 'Started'"`
`Tabs`	Enable/disable tabs	`Tabs="true"` or `Tabs="false"`
`Lock`	Prevent menu movement	`Lock="true"`

Page Types

Type	Purpose
`xmenu`	Top-level navigation item (appears in header bar)
`menu`	Container page that groups child pages into panels
`php`	Standard PHP page (default if not specified)

The Tabs Attribute

The Tabs attribute controls whether child pages appear as tabs:

# Enable built-in tab interface
Menu="Tasks:60"
Type="xmenu"
Tabs="true"
---

When Tabs="true", all pages with Menu="ParentName:N" appear as tabs. When Tabs="false", child pages are listed but don’t use the tab interface.

Preserving Tab State

Save and restore the selected tab:

$(function() {
    // Restore saved tab
    var savedTab = localStorage.getItem('yourplugin-tab');
    if (savedTab) {
        $('.tab[data-tab="' + savedTab + '"]').click();
    }

    // Save tab on change
    $('.tab').on('click', function() {
        localStorage.setItem('yourplugin-tab', $(this).data('tab'));
    });
});

Tab-Specific Forms

Each tab can have its own form with independent submission:

<div class="tab-content" data-tab="general">
    <form method="POST" action="/plugins/yourplugin/save-general.php">
        <input type="hidden" name="csrf_token" value="<?=$var['csrf_token']?>">
        <!-- General settings -->
        <input type="submit" value="Apply">
    </form>
</div>

<div class="tab-content" data-tab="network">
    <form method="POST" action="/plugins/yourplugin/save-network.php">
        <input type="hidden" name="csrf_token" value="<?=$var['csrf_token']?>">
        <!-- Network settings -->
        <input type="submit" value="Apply">
    </form>
</div>

Use separate .page files with the Menu attribute to create multi-tab pages. The format is:

Menu="ParentName:SortOrder"

ParentName - The name of the parent page (without .page extension)
SortOrder - Numeric value determining tab order (lower numbers appear first)

Example: Adding a Tab to Docker

# compose.manager.page - Adds "Compose" tab to Docker page
Menu="Docker:2"
Title="Compose"
Type="php"
Cond="$var['fsState'] == 'Started' && exec('/etc/rc.d/rc.docker status | grep -v \"not\"')"
---

This creates a second tab on the Docker page (Docker Containers is at position 1).

Sort Order Conventions

Lower numbers appear first (leftmost). Common patterns observed in Unraid®:

Range	Usage
1-10	Primary/default tabs
10-50	Secondary features
50-100	Plugin additions
100+	Low-priority or conditional items
999+	“Other” or catch-all items

Leave gaps between your sort numbers (e.g., use 10, 20, 30 instead of 1, 2, 3) to allow other plugins to insert tabs between yours.

Styling Tabs

.tabs {
    display: flex;
    border-bottom: 1px solid var(--border-color);
    margin-bottom: 20px;
}

.tab {
    padding: 10px 20px;
    cursor: pointer;
    border-bottom: 2px solid transparent;
}

.tab.active {
    border-bottom-color: var(--primary-color);
    font-weight: bold;
}

.tab-content {
    display: none;
}

.tab-content.active {
    display: block;
}

This reference documents all standard menu locations in Unraid® where plugins can add pages or tabs.

The main navigation bar uses Menu="Tasks:N" with these standard positions:

Position	Page	Description
`Tasks:1`	Main, Dashboard	Array status and dashboard (shared position)
`Tasks:2`	Shares, Favorites	User shares and favorites (shared position)
`Tasks:3`	Users	User management (conditionally shown)
`Tasks:4`	Settings	System settings container
`Tasks:50`	Plugins	Plugin manager
`Tasks:60`	Docker	Docker container management
`Tasks:61`	Available	Compose Manager uses this for standalone menu
`Tasks:70`	VMs	Virtual machine management
`Tasks:80`	Apps	Community Applications
`Tasks:90`	Tools	System tools container

Positions 1-4 are reserved for core Unraid® pages. Plugins should use positions 50+ to avoid conflicts.

Settings Submenus

The Settings page (Tasks:4) contains these category panels:

Menu	Title	Type	Description
`Settings:1`	OtherSettings	menu	System Settings panel
`Settings:2`	NetworkServices	menu	Network Services panel
`Settings:3`	UserPreferences	menu	User Preferences panel
`Settings`	Utilities	menu	User Utilities panel (no number = alphabetical)

System Settings (OtherSettings)

Pages in the System Settings panel use Menu="OtherSettings":

Existing Pages	Your Plugin
CPU Pinning, Date and Time, Disk Settings, Docker, Global Share Settings, Identification, Management Access, Network Settings, Power Mode, VM Manager	Add with `Menu="OtherSettings"`

Network Services

Pages in the Network Services panel use Menu="NetworkServices" or Menu="NetworkServices:N":

Position	Page
`NetworkServices:2`	NFS
`NetworkServices:3`	SMB (has sub-tabs)
`NetworkServices:999`	FTP Server
`NetworkServices`	VPN Manager, Outgoing Proxy, Syslog Server (no number = alphabetical)

User Utilities

Plugin settings pages commonly go here using Menu="Utilities":

Existing Pages
Community Applications, User Scripts, TurboWrite, Backup/Restore Appdata, Fix Common Problems, Stats Settings, System Temp, Custom Tab, rclone, etc.

User Preferences (UserPreferences)

User-specific settings use Menu="UserPreferences":

Existing Pages
Confirmations, Console Settings, Display Settings, Notification Settings, Scheduler

Tools Submenus

The Tools page (Tasks:90) contains:

Menu	Title	Type
`Tools:10`	UNRAID-OS	menu (Unraid OS utilities)
`Tools:20`	WebGui	menu (WebUI debugging tools)
`Tools:90`	About	menu (Credits, EULA)
`Tools`	System Information	menu (no number)

Unraid OS (UNRAID-OS)

System utilities use Menu="UNRAID-OS":

Existing Pages
Diagnostics, Hardware Profile, Log Viewer, New Config, New Permissions, Open Terminal, Processes, System Devices, System Drivers, System Log

Documentation and system info use Menu="About" or Menu="About:N":

Position	Page
`About:10`	Update OS
`About:20`	Downgrade OS
`About:30`	Registration
`About`	Credits, EULA (no number = alphabetical)

Adding Tabs to Existing Pages

These are common parent pages that support tabs:

Parent	Your Menu Value	Example Use
Docker	`Menu="Docker:N"`	Add compose/stack management
VMs	`Menu="VMs:N"`	Add VM-related features
Plugins	`Menu="Plugins"`	Plugin-related pages
SMB	`Menu="SMB:N"`	SMB configuration tabs
About	`Menu="About:N"`	System info pages

Use the Cond attribute to show/hide menu items based on system state:

# Only show when Docker is enabled and running
Cond="exec(\"grep -o '^DOCKER_ENABLED=.yes' /boot/config/docker.cfg 2>/dev/null\")"

# Only show when array is started
Cond="$var['fsState'] == 'Started'"

# Only show when a service is running
Cond="is_file('/var/run/dockerd.pid')"

# Combine conditions
Cond="$var['fsState'] == 'Started' && exec('/etc/rc.d/rc.docker status | grep -v \"not\"')"

Some menus use PHP variables for conditional placement:

# Users menu - conditionally shown based on display setting
Menu="$display['users'] Tasks:3"

Best Practices

Keep related settings together
Use clear, descriptive tab names
Don’t create too many tabs (3-5 is usually ideal)
Consider user workflow when ordering tabs
Save tab state for better UX
Use unique, plugin-prefixed class names to avoid conflicts
Scope your jQuery selectors to your container elements

Adding Tabs to Existing Pages

Plugins can add new tabs to existing Unraid® pages (like the Docker page) using the Menu header in .page files. This creates a seamless integrated experience but requires careful attention to avoid conflicts.

Docker page with Compose tab Example: Compose Manager adds a “Compose” tab to the Docker page

Selector Scoping

When your plugin adds a tab to an existing Unraid page, your JavaScript will run in the same context as the parent page’s JavaScript. You must scope your CSS selectors to avoid conflicts.

Common classes like .auto_start, .advanced, .basic, and .updatecolumn are used by multiple Unraid pages. If your plugin uses these same classes and initializes jQuery plugins on them (like switchButton), you’ll inadvertently reinitialize or modify elements that belong to the parent page.

Problem - Unscoped selectors:

// BAD - This selects ALL .auto_start on the page, including Docker tab's checkboxes
$('.auto_start').switchButton({labels_placement:'right'});

// BAD - This toggles ALL .advanced elements, affecting Docker tab too
$('.advanced').toggle();

Solution - Scope to your container:

// GOOD - Only select checkboxes within your plugin's table
$('#my_plugin_table .auto_start').switchButton({labels_placement:'right'});

// GOOD - Only toggle your plugin's advanced columns
$('#my_plugin_table .advanced').toggle();

Use Unique Class Names

Even with scoped selectors in your own code, Unraid’s core pages use unscoped selectors that will still match your elements. For example, the Docker tab’s JavaScript uses $('tr.sortable') and $('.updatecolumn') without scoping to its own container. If your plugin uses these class names, Docker’s “Check for Updates” button will animate your plugin’s rows too.

The only reliable solution is to use plugin-specific class names:

<!-- BAD - Docker's unscoped JavaScript will target these -->
<tr class="sortable">
    <td class="updatecolumn">not checked</td>
</tr>

<!-- GOOD - Unique class names prevent cross-tab interference -->
<tr class="myplugin-sortable">
    <td class="myplugin-updatecolumn">not checked</td>
</tr>

For elements added to shared areas (like an Advanced View toggle in the tab bar), always use plugin-specific class names:

// BAD - may conflict with Docker tab's advancedview toggle
$(".tabs").append('<span class="status"><input type="checkbox" class="advancedview"></span>');
$('.advancedview').switchButton({...});

// GOOD - unique class name avoids conflicts
$(".tabs").append('<span class="status myplugin-view-toggle"><input type="checkbox" class="myplugin-advancedview"></span>');
$('.myplugin-advancedview').switchButton({...});

Initialization Timing

When adding a tab to an existing page, that page’s JavaScript typically runs first and initializes its own UI components. Your plugin’s async content loading can conflict if not properly scoped:

// Load content asynchronously, then initialize
function loadMyPluginContent() {
    $.get('/plugins/myplugin/content.php', function(data) {
        $('#myplugin_content').html(data);

        // Initialize ONLY your plugin's elements
        $('#myplugin_content .auto_start').switchButton({...});
        $('#myplugin_content .auto_start').change(function(){
            // Handle change
        });
    });
}

Page Files
Form Controls
JavaScript Patterns - See “Scope Your Selectors” and “Namespace Your CSS Classes”
Icons and Styling - See “Namespace Your Class Names”

Tab Pages

Overview

Basic Tab Structure

JavaScript for Tabs

Page Header Attributes

Page Types

The Tabs Attribute

Preserving Tab State

Tab-Specific Forms

Multi-Page Tabs (Menu Numbering System)

Example: Adding a Tab to Docker

Sort Order Conventions

Styling Tabs

Unraid® Menu Structure Reference

Header Navigation Bar (Tasks)

Settings Submenus

System Settings (OtherSettings)

Network Services

User Utilities

User Preferences (UserPreferences)

Tools Submenus

Unraid OS (UNRAID-OS)

About Menu

Adding Tabs to Existing Pages

Conditional Menu Display

Dynamic Menu Placement

Best Practices

Adding Tabs to Existing Pages

Selector Scoping

Use Unique Class Names

Initialization Timing

Tab Pages

Overview

Basic Tab Structure

JavaScript for Tabs

Page Header Attributes

Page Types

The Tabs Attribute

Preserving Tab State

Tab-Specific Forms

Multi-Page Tabs (Menu Numbering System)

Example: Adding a Tab to Docker

Sort Order Conventions

Styling Tabs

Unraid® Menu Structure Reference

Header Navigation Bar (Tasks)

Settings Submenus

System Settings (OtherSettings)

Network Services

User Utilities

User Preferences (UserPreferences)

Tools Submenus

Unraid OS (UNRAID-OS)

About Menu

Adding Tabs to Existing Pages

Conditional Menu Display

Dynamic Menu Placement

Best Practices

Adding Tabs to Existing Pages

Selector Scoping

Use Unique Class Names

Initialization Timing

Related Topics
